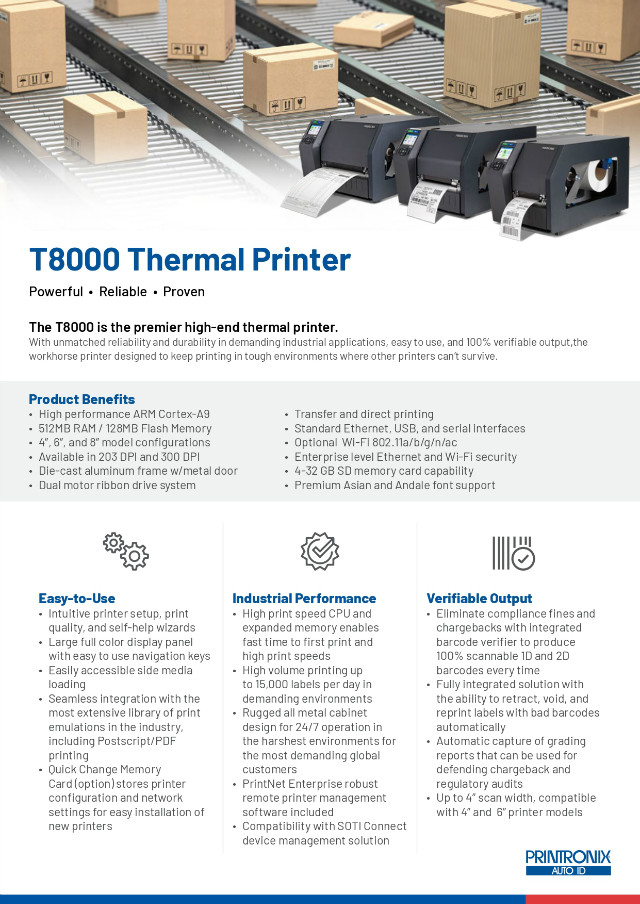

모델명 : PRINTRONIX Barcode Printer
기기명 : T8000 Thermal BarCode Printers













PRODUCT BENEFITS
 • High performance ARM Cortex-A9
 • Available in 203 DPI and 300 DPI
 • 4”, 6”, and 8” model configurations
 • Die-cast aluminum frame w/metal doors
 • Dual motor ribbon drive system
 • Transfer and direct printing
 • 512MB RAM / 128 Flash Memory
 • 4-32 GB SD flash memory card capability
 • Premium Asian and Andale font support
 • ENERGY STAR Certified


PRINTER SPECIFICATIONS
 • Max Print Speed (4”/6”/8”): 14/12/10 IPS @ 203 DPI
 • Print Method: Transfer and Direct
 • Resolution: 203 DPI / 300 DPI
 • Max. Print Width: 4.1” (104mm)/6.6” (168mm)/8.5” (216mm)
 • Printer Memory: 512MB RAM / 128MB Flash


MEDIA SPECIFICATIONS
 • Media Type: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
 • Min. Media Width: (4”/6”/8”): 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
 • Max. Media Width: 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
 • Min. Media Length: 0.25” / 1.0” (Continuous/Tear-Off)/0.5” (Peel-Off)
 • Max. Media Length: Up to 99” (251.46cm)
 • Media Thickness: 0.0635mm (0.0025”) to 0.254mm (0.010”)
 • Media Roll Core Diameter: 1.5” (37.5mm) to 3.0” (76mm)
 • Max. Media Roll Diameter: 8.0” (209mm)
 • Media Sensing: Gap, Mark, Advanced Gap, Advanced Notch


RIBBON SPECIFICATIONS
 • Ribbon Type: Wax, Wax/Resin, Resin
 • Min. Ribbon Width: (4”/6”/8”) 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
 • Max. Ribbon Width: (4”/6”/8”) 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
 • Max. Ribbon Length: 625 Meters


PHYSICAL CHARACTERISTICS
 • Width (4″/6″/8″): 11.7″ (297.2mm) / 13.4″ (340.4mm) / 15.4″ (391.2mm)
 • Height (4″/6″/8″): 13″ (330.2mm) / 13″ (330.2mm) / 13″ (330.2mm)
 • Depth (4″/6″/8″): 20.5″ (520.7mm) /20.5″ (520.7mm) / 20.5″ (520.7mm)
 • Printer Weight (4″/6″/8″): 37 lbs. (16.7Kg.) / 40 lbs. (18.1 Kg.) / 43 lbs. (19.5Kg.)
 • Shipping Weight (4″/6″/8″): 46 lbs. (20.8Kg.) / 49 lbs. (22.2 Kg.) / 52 lbs. (23.6Kg.)


PROGRAMMING PRINTER LANGUAGES
 • IGP Languages: PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
 • Line Printer Plus Languages: P-Series + XQ, Proprinter, Serial Matrix, Epson
 • Job Control Languages: PJL, XML, and PTX-SETUP
 • Optional Languages: IPDS, TN5250/TN3270, PDF Level 1.7, Postscript Level 3


COMMUNICATION AND CONNECTIVITY/INTERFACE
 • Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
 • Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
 • WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP), EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1, EAP-FAST, EAP-MD5


BARCODE VALIDATION
 • Online Data Validator (ODV) – Validates, Grade, Report, and Overstrike barcodes
   Supports 1D Barcode
MEDIA HANDLING MODES
 • Standard: Continuous, Tear-Off Strip, Tear-Off
 • Options: Peel-Off, Cut, and Rewind


OPERATING ENVIRONMENT
 • Operating Temperature (Direct Thermal w/o accessories): 23 to 104 F (-5 to 40 C)
 • Operating Temperature (Thermal Transfer or Direct Thermal w/ accessories): 40 to 104 F (5 to 40 C)
 • Operating Humidity Range: 20 to 85% Non-Condensing
 • Storage Temperature: -23 to 140 deg. F, (-5 to 60 deg. C)
 • Storage Humidity Range: 5% to 85% Non-condensing


POWER REQUIREMENT
 • Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)


REGULATORY COMPLIANCES
 • Emissions: FCC, CE, CCC
 • Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, BSMI, S-MARK, NOM
 • Environmental: RoHS, WEEE, Energy Star


BARCODE SYMBOLOGIES
 • 1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar,
  Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5,
  German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E,
  UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET,
  4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN,
  PLANET, USPS Intelligent Mail, LOGMARS
 • 2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix,
   QR Codes, Aztec, GS1 Databar (RSS-14)

   FONT, GRAPHIC SUPPORT
 • Graphic Formats: PCX, TIFF, BMP, PNG
 • Font Technologies: Intellifont, TrueType, Unicode
 • Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
 • Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
 • Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
 • PDF/ PostScript Level 3: 35 Fonts


REMOTE MANAGEMENT SOFTWARE
 • PrintNet Enterprise Suite: Enterprise grade remove management solution


OPTIONS AND ACCESSORIES
 • WiFi 802.11 a/b/g/n
 • Rewind with Peel & Present 4”/6”/8”
 • Parallel Port Card
 • Heavy Duty Cutter 4”/6”/8”
 • GPIO
 • TN5250/3270
 • Premium Asian Font Cards
 • PostScript/PDF
 • Premium Andale Font Cards
 • IPDS
 • QCMC (SD Quick Change Memory Card)
 • Online Data Validator (ODV)














.
